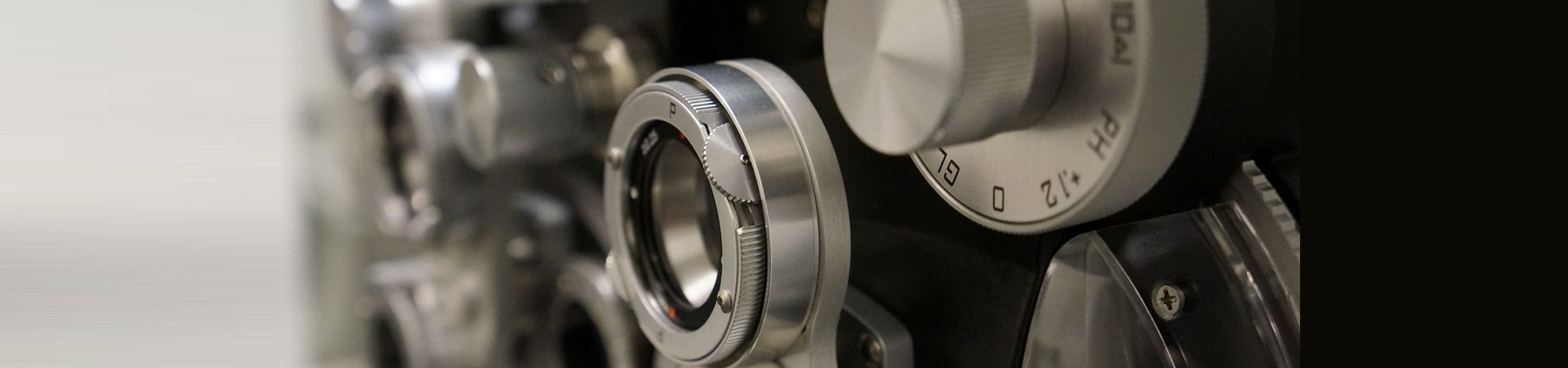

Meent installs the Ophthalmology Diagnostics & Testing unit, a motorized refraction lane comprising a digital phoropter, an auto-refractometer, and a chart projector. The auto-refractometer measures sphere, cylinder, and axis in under 3 seconds per eye, with a vertex distance of 12.0 mm. The digital phoropter synchronizes with the refractometer data, automatically setting the starting lens combination; the optometrist refines the prescription in 0.25 D increments. A Snellen/ETDRS visual acuity chart is projected via an LED source with a luminance of 120 cd/m², calibrated monthly with a photometer.

For anterior segment examination, a slit-lamp biomicroscope with a 5-magnification Galilean changer (6×, 10×, 16×, 25×, 40×) and a blue cobalt filter is positioned. A Goldmann applanation tonometer mounted on the slit lamp measures intraocular pressure (IOP) with a ±0.5 mmHg accuracy, requiring a daily calibration check using the supplied contact lens. For dilated fundus examination, an indirect ophthalmoscope with a 20 D condensing lens and a variable aperture is provided.

Technical Note:
The auto-refractometer’s internal model eye should be tested at the start of each clinic session; any cylinder axis error exceeding 5° requires recalibration. The Goldmann tonometer probe must be disinfected with 1:10 sodium hypochlorite for 10 minutes between patients and rinsed with sterile water, as residual hypochlorite causes corneal epithelial staining.

Meent deploys the Ophthalmic Microsurgery system, an apochromatic surgical microscope with a 6:1 zoom ratio, motorized XY coupling, and an integrated high-definition recording camera. The objective lens has a 200 mm working distance, and the binocular tubes provide 10.5× wide-field eyepieces with a diopter adjustment of ±8 D. A xenon coaxial illumination source delivers 80,000 lux at the field centre, with a built-in red-reflex enhancement filter. For cataract and vitreoretinal procedures, a BIOM (Binocular Indirect Ophthalmo Microscope) attachment is available.

The microsurgical instrument set includes Kelman-McPherson angled forceps, micro-capsulorhexis forceps, a phacoemulsification handpiece with a titanium tip (oscillation frequency 40 kHz), and an irrigation/aspiration cannula. The phacoemulsification console uses a peristaltic pump with a vacuum limit of 0–600 mmHg and a flow rate of 0–60 mL/min. A foot pedal with a three-dimensional switch controls irrigation, aspiration, and coagulation diathermy simultaneously. The microscope’s video feed is displayed on a 27-inch 4K monitor mounted on a ceiling-suspended boom, allowing the scrub nurse to anticipate instrument exchanges.

Technical Note:
The phaco handpiece must be flushed with balanced salt solution for 30 seconds after every case to prevent salt crystal formation in the aspiration line. The microscope’s xenon lamp is replaced at 500-hour intervals; a safety lockout prevents operation beyond 550 hours to avoid the risk of bulb explosion in the sterile field.

Meent adds the Ophthalmic Imaging module: an optical coherence tomography (OCT) scanner with a spectral-domain engine, acquiring 70,000 A-scans per second with an axial resolution of 5 μm in tissue. The system performs a macular cube scan (6×6 mm, 512×128 A-scans) in 2.4 seconds, generating a retinal thickness map and a ganglion cell layer analysis. A fundus camera with a 45° field of view captures colour and red-free images, automatically aligning and focusing the patient’s eye.

These imaging units are linked to the diagnostic workstation. When a patient with suspected glaucoma completes the OCT, the software automatically co-registers the ganglion cell layer thickness deviation map with the disc photograph and the visual field test results, producing a Glaucoma Progression Analysis report. The surgeon reviews these fused images on the surgical microscope’s heads-up display during laser trabeculoplasty or filtering surgery.

Technical Note:
The OCT’s calibration must be checked weekly using the supplied model eye; a retinal thickness measurement error exceeding 8 μm in the central 1 mm subfield indicates a need for service. The fundus camera’s Xenon flash tube has a rated lifespan of 15,000 flashes; the system logs flash count and displays a warning at 14,000 flashes.

Meent supplies the Ophthalmic Furniture range: a motorized examination chair with a 360° swivel, armrests that retract for wheelchair transfer, and a synchronized headrest that tilts to accommodate a Goldmann perimeter bowl or a slit lamp. A matching instrument stand accommodates a slit lamp and a keratometer on a sliding top with lockable casters. The workstation’s reception desk features a chin rest for a non-contact tonometer, integrated into the countertop to minimize patient repositioning.

Patient flow follows a circular path: registration → autorefraction → slit lamp → OCT → surgeon consult → discharge. Each station is assigned a standard examination time (15 minutes for a comprehensive eye exam, 30 minutes for a dilated examination). A digital patient-call display advances the queue; when the OCT scan is completed, a pop-up on the surgeon’s monitor announces that diagnostic data is available for review.

Technical Note:
The motorized chair’s safety-edge sensor stops downward movement if resistance exceeds 5 kg, preventing crush injury. The chair’s base must be bolted to the floor if a slit lamp weighing over 25 kg is mounted on a swinging arm.

Meent deploys an ophthalmology-specific picture archiving and communication system (PACS) that aggregates refractive data, slit-lamp photographs, OCT scans, fundus images, and surgical video. The system applies DICOM Modality Worklist to auto-populate patient demographics and study identifiers. After each patient visit, a structured report is generated that includes the best-corrected visual acuity, IOP, anterior and posterior segment findings, and surgical plan if indicated. The report is electronically signed and sent to the referring optometrist within 24 hours.

A surgical audit module tracks post-operative outcomes: target refraction vs. achieved refraction, posterior capsular opacification rate, and endophthalmitis incidence. The dashboard flags any surgeon whose post-operative infection rate exceeds 0.1% in a rolling 12-month window, triggering a peer review. Data is archived for 15 years to meet paediatric ophthalmology requirements.

Technical Note:
The PACS server requires dual 10 GbE network interfaces to support real-time OCT streaming. An uninterruptible power supply (UPS) with 60-minute runtime is mandatory. The DICOM-compliant archive is verified quarterly with a test retrieve of 50 studies; any study failing to load within 5 seconds indicates storage array degradation.
